CITROEN RELAY 35 L3 DIESEL

2.2 BlueHDi Curtainside 140ps

CITROEN RELAY 35 L3 DIESEL 2.2 BlueHDi Curtainside 140ps

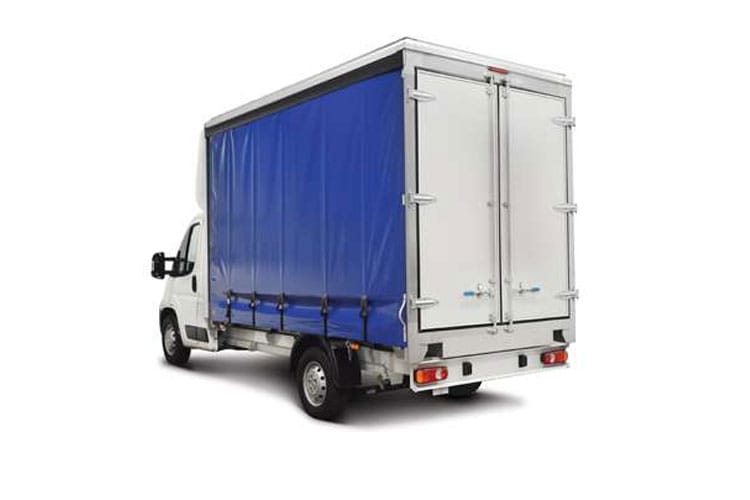

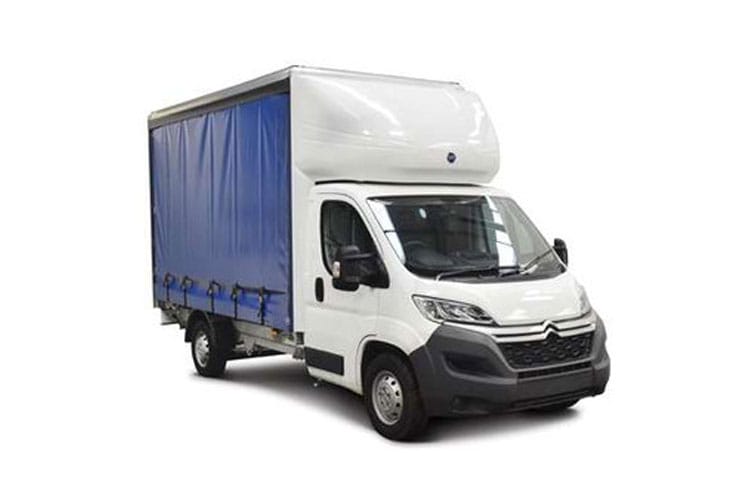

Images are for illustrative purposes only.



Customise Your Lease

An excess mileage charge will apply if you exceed the contract mileage. This will be detailed on your order form

Deal Summary

2.2 BlueHDi Curtainside 140ps CITROEN RELAY 35 L3 DIESEL
Contract type
Contract Term
Initial Rental
Annual Mileage
Maintenance
Additional extras

Fetching your price

Key Information

Transmission
Transmission Manual
Fuel Type
Fuel Type Diesel
Stopwatch
0 - 62mph 0.00s
Engine Size
Engine Size 2.2litres

Data provided by CAP-HPI database - Ref# 51573

Options

Standard Equipment

Technical Data

Driver Convenience

Exterior Features

Interior Features

Paintwork

Passive Safety

Technical

Trim

Wheels

Driver Convenience

  • Battery charge warning
  • Cruise control with programmable speed limiter
  • Door open warning light
  • Gearshift indicator
  • Handbrake on warning light
  • Locking fuel cap
  • Low fuel warning light
  • Oil level indicator
  • Power steering (non variable)
  • Programmable overspeed warning
  • Rev counter, trip computer, water temperature and fuel guage
  • Seatbelt warning indicator
  • Telematics box for Free2Move Connect Fleet services

Entertainment

  • 4 speakers
  • DAB radio with steering mounted controls, Bluetooth handsfree and USB socket

Exterior Features

  • 15mm thick floor
  • Aerodynamic pod with additional storage
  • Aluminium V groove side rail with four pull up hooks at 1m intervals
  • Blue curtains with side aperture of 2080mm
  • Daytime running lights
  • Dipping rear view mirror
  • Electric front windows
  • Halogen headlights with clear polycarbonate lenses
  • High impact kick strips with side panels and bulkhead protection
  • Laminated windscreen
  • Lightweight rear barn doors with anti corrosion external locking
  • Manually folding door mirrors
  • Remote headlight adjustment from facia
  • Solid paint
  • Tinted windows
  • Trifunction aerial in wing mirror
  • Twin lens door mirrors with electrically adjustable and heated upper mirror
  • Two speed intermittent front wipers

Interior Features

  • 12V socket in cabin
  • Auto illumination of cab light via ceiling mount button
  • Bulb out warning for side light,headlamp and indicators
  • Courtesy light
  • Driver's seat with height, rake and reach adjustment
  • Front door armrest
  • Front door bins
  • Front door pockets
  • Height adjustable front headrests
  • Height adjustable steering wheel
  • Interior LED light
  • Magnet cloth upholstery
  • Manual air conditioning for cab area with glovebox
  • Non illuminated lockable glove box
  • Non slip hardwearing front cabin floor covering
  • Passenger grab handle
  • Passengers underseat storage tray
  • Reach adjustable steering column
  • Storage bin in top of dashboard
  • Storage tray
  • Two cup holders and mobile phone storage in centre of lower dashboard
  • Under dash storage areas

Passive Safety

  • Driver's airbag

Security

  • Auto door locking
  • High frequency remote control central locking with 2 button plip
  • Lights on alarm
  • Perimetric alarm and deadlocks
  • Thatcham rolling transponder immobiliser
  • Visible Vehicle Identification Number (VIN)

Technical

  • 12V socket on central dashboard console
  • ABS
  • Electrical connections interface box
  • Electronic brake force distribution (EBFD)
  • Electronic Stability Control (ESC)
  • Emergency brake assist
  • Extended wiring at rear of vehicle
  • Heavy duty reinforced twin leaf rear suspension

Wheels

  • Full size steel spare wheel

Emissions - ICE

  • CO
    Not Available
  • CO2
    186
  • HC
    Not Available
  • HC+NOx
    Not Available
  • Noise Level dB(A)
    Not Available
  • NOx
    Not Available
  • Particles
    Not Available
  • Standard Emissions
    EURO 6
  • WLTP - CO2 (g/km) - Comb - TEH
    348
  • WLTP - CO2 (g/km) - Comb - TEL
    286

Engine and Drive Train

  • Automatic Transmission
    No
  • Bore
    85
  • Catalytic Convertor
    Yes
  • CC
    2179
  • Compression Ratio
    Not Available
  • Cooling System
    WATER
  • Cylinder Layout
    IN-LINE
  • Cylinders
    4
  • Engine Layout
    FRONT TRANSVERSE
  • Engine Make
    Not Available
  • Fuel Delivery
    COMMON RAIL
  • Fuel Type
    DIESEL
  • Gears
    6 SPEED
  • Manual Transmission
    Yes
  • Number of Valves
    16
  • Stroke
    96
  • Valve gear
    DOHC

Fuel Consumption - ICE

  • EC
    Yes
  • WLTP - FC (l/100km) - Comb
    13.3
  • WLTP - FC (l/100km) - Extra High
    17.4
  • WLTP - FC (l/100km) - High
    11.7
  • WLTP - FC (l/100km) - Low
    10.9
  • WLTP - FC (l/100km) - Medium
    10.8
  • WLTP - MPG - Comb
    21.2
  • WLTP - MPG - Extra High
    16.2
  • WLTP - MPG - High
    24.1
  • WLTP - MPG - Low
    25.9
  • WLTP - MPG - Medium
    26.2

General

  • Alternative Fuel Qualifying
    No
  • Did at least one aspect of this vehicles safety give cause for concern?
    No
  • Badge Engine CC
    2.2
  • Badge Power
    140
  • Based On ID
    Not Available
  • Battery Volts
    12
  • Chassis Engine Number
    Not Available
  • Clutch
    SINGLE DRY PLATE
  • Coin Description
    Not Available
  • Coin Gross Vehicle Weight Code
    Not Available
  • Coin Power Output Code
    Not Available
  • Coin Series
    Not Available
  • Coin Wheelbase Description Code
    Not Available
  • Coin Wheelbase Name Code
    Not Available
  • Exhaust System
    CATALYTIC CONVERTER
  • Front Brakes
    VENTILATED DISCS
  • Front Suspension
    MACPHERSON STRUTS
  • Generation Mark
    2
  • Ghost model for valuation purposes
    No
  • Hand Brake
    REAR DRUMS
  • Insurance Group 1
    Not Available
  • Insurance Group 2
    Not Available
  • Manufacturers Corrosion Perforation Guarantee - Years
    6
  • Manufacturers Paintwork Guarantee - Years
    1
  • NCAP Adult Occupant Protection %
    Not Available
  • NCAP Child Occupant Protection %
    Not Available
  • NCAP Front/Side Impact - Discontinued February 09
    Not Available
  • NCAP Overall Rating - Effective February 09
    Not Available
  • NCAP Overall Rating - LCV
    Bronze
  • NCAP Pedestrian Protection %
    Not Available
  • NCAP Safety Assist %
    32
  • Rear Brakes
    DISCS
  • Rear Suspension
    LEAF SPRINGS
  • Relative Height
    H1
  • Relative Length
    L3
  • Running Cost League Headings
    LARGE
  • Service Interval Frequency - Months
    24
  • Service Interval Mileage
    32000
  • Special Edition
    No
  • Special Order
    No
  • Standard manufacturers warranty - Mileage
    Unlimited
  • Standard manufacturers warranty - Years
    2
  • Steering
    PAS RACK AND PINION
  • Vehicle Homologation Class
    N1
  • Vin/Frame No.
    Not Available

Performance

  • 0 to 62
    Not Available
  • BHP
    140
  • Engine Power KW
    103
  • Engine Power RPM
    3750
  • Engine Torque LBS.FT
    251
  • Engine Torque MKG
    34.7
  • Engine Torque NM
    340
  • Engine Torque RPM
    1750

Test Cycles

  • Emissions Test Cycle
    WLTP
  • RDE Certification Level
    RDE 2

Tyres

  • Alloys?
    No
  • Automatic Clutch
    No
  • Plated 3rd Axle
    Not Available
  • Plated 4th Axle
    Not Available
  • Space Saver?
    No
  • Tyre Make
    Not Available
  • Tyre Size Front
    215/70 R15
  • Tyre Size Rear
    215/70 R15
  • Tyre Size Spare
    FULL SIZE
  • Wheel Style
    Not Available
  • Wheel Type
    15" STEEL

Vehicle Dimensions

  • Front Overhang
    948
  • Height
    3200
  • Height (including roof rails)
    Not Available
  • Length
    5970
  • Load Deck Height
    Not Available
  • Load Height
    2350
  • Load Length
    3480
  • Load Space Width Between Wheel Arches
    Not Available
  • Load Width
    2057
  • Lower Rear Door Width
    Not Available
  • Rear Door Height
    Not Available
  • Rear Overhang
    987
  • Side Load Door Height
    Not Available
  • Side Load Door Width
    Not Available
  • Upper Rear Door Width
    Not Available
  • Wheelbase
    4035
  • Width (excluding mirrors)
    2085

Weight and Capacities

  • Boot Capacity Saloons
    Not Available
  • Fuel Tank Capacity (Litres)
    90
  • Gross Vehicle Weight
    3500
  • Load Space Volume
    17
  • Luggage Capacity (Seats Down)
    Not Available
  • Luggage Capacity (Seats Up)
    Not Available
  • Luggage Capacity - 2nd Row Seats Removed
    Not Available
  • Luggage Capacity - 2nd Row Seats Up
    Not Available
  • Luggage Capacity - 3rd Row Seats Down
    Not Available
  • Luggage Capacity - 3rd Row Seats Removed
    Not Available
  • Luggage Capacity - 3rd Row Seats Up
    Not Available
  • Max. Roof Load
    Not Available
  • Minimum Kerbweight
    2466
  • No. of Seats
    3
  • Payload
    1034
  • Plated 2nd Axle
    2000
  • Plated Front Axle
    1850
