MAN TGE 3 LONG DIESEL

180 BiTurbo Chassis Cab

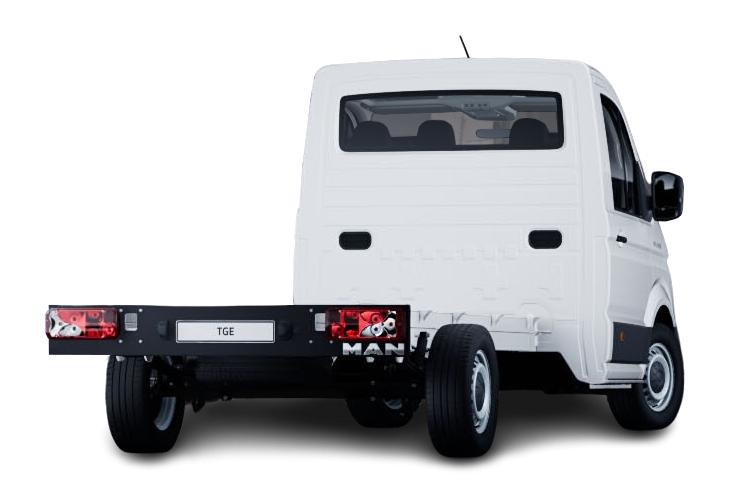

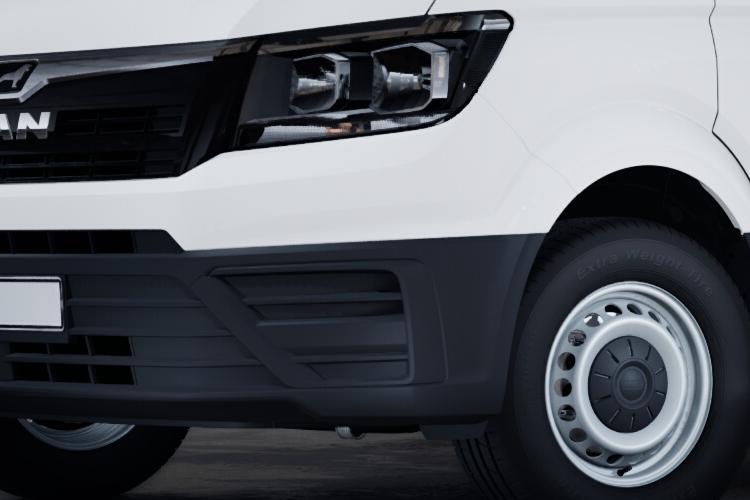

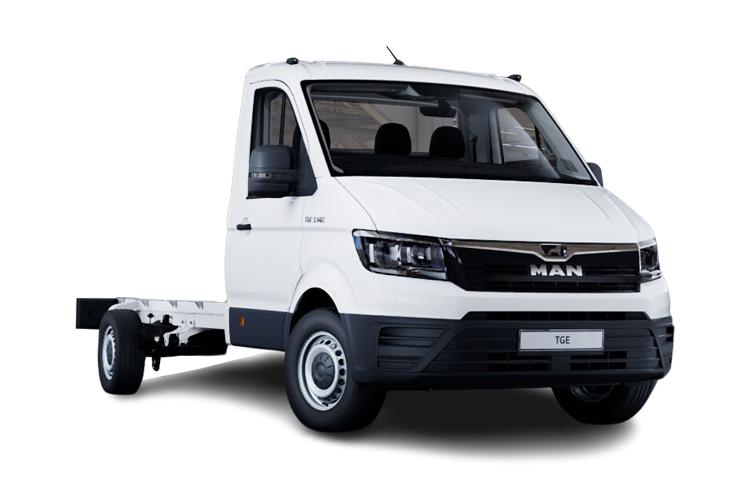

MAN TGE 3 LONG DIESEL 180 BiTurbo Chassis Cab

Images are for illustrative purposes only.



Customise Your Lease

An excess mileage charge will apply if you exceed the contract mileage. This will be detailed on your order form

Deal Summary

180 BiTurbo Chassis Cab MAN TGE 3 LONG DIESEL
Contract type
Contract Term
Initial Rental
Annual Mileage
Maintenance
Additional extras

Fetching your price

Key Information

Transmission
Transmission Manual
Fuel Type
Fuel Type Diesel
Top Speed
Top Speed 100mph
Economy
Economy 37.70mpg
Emissions
Co2 0.00g/km
Engine Size
Engine Size 2.0litres

Data provided by CAP-HPI database - Ref# 42730

Options

Standard Equipment

Technical Data

Driver Convenience

Entertainment

Exterior Features

Interior Features

Packs

Paintwork

Passive Safety

Security

Technical

Trim

Wheels

Driver Convenience

  • Bluetooth connectivity
  • Electromechanical steering
  • Pan European ecall 3 button module
  • Wired smartphone integration

Entertainment

  • DAB plus for media van
  • USB connection

Exterior Features

  • Driver seatbelt warning light
  • Front position lamps on the roof
  • Side marker lamps

Interior Features

  • Height adjustable driver seat
  • Jack and tool kit
  • Reach and rake adjustable steering wheel
  • Rubber floor covering
  • Terminal block

Passive Safety

  • 3 point inertia reel belt on all seats
  • Crosswind assist

Security

  • Electronic immobiliser
  • Remote central locking with 2 remote keys

Technical

  • 12v socket in dash panel
  • 30L AdBlue tank
  • 75 litre fuel tank
  • ABS and EBA
  • ESC
  • Parking brake - hill start assist
  • Start and stop system with regenerative braking

Wheels

  • Full size steel spare wheel
  • Low rolling resistance tyres

Emissions - ICE

  • CO
    Not Available
  • CO2
    Not Available
  • HC
    Not Available
  • HC+NOx
    Not Available
  • Noise Level dB(A)
    Not Available
  • NOx
    Not Available
  • Particles
    Not Available
  • Standard Emissions
    EURO 6
  • WLTP - CO2 (g/km) - Comb
    267

Engine and Drive Train

  • Automatic Transmission
    No
  • Bore
    81
  • Catalytic Convertor
    Yes
  • CC
    1968
  • Compression Ratio
    15.5:1
  • Cylinder Layout
    IN-LINE
  • Cylinders
    4
  • Engine Codes
    DAVA
  • Engine Layout
    FRONT TRANSVERSE
  • Engine Make
    Not Available
  • Fuel Delivery
    COMMON RAIL
  • Fuel Type
    DIESEL
  • Gears
    6 SPEED
  • Manual Transmission
    Yes
  • Number of Valves
    16
  • Stroke
    95.5
  • Valve gear
    DOHC

Fuel Consumption - ICE

  • EC Combined
    Not Available
  • EC Extra Urban
    Not Available
  • EC Urban
    Not Available
  • WLTP - FC (l/100km) - Comb
    10.2
  • WLTP - FC (l/100km) - Extra High
    11.6
  • WLTP - FC (l/100km) - High
    9.1
  • WLTP - FC (l/100km) - Low
    10.5
  • WLTP - FC (l/100km) - Medium
    9.3
  • WLTP - MPG - Comb
    27.7
  • WLTP - MPG - Extra High
    24.4
  • WLTP - MPG - High
    31
  • WLTP - MPG - Low
    26.9
  • WLTP - MPG - Medium
    30.4

General

  • Alternator Amps
    140
  • Did at least one aspect of this vehicles safety give cause for concern?
    No
  • Badge Engine CC
    2.0
  • Badge Power
    180
  • Based On ID
    Not Available
  • Battery AH
    92
  • Battery Volts
    12
  • Chassis Engine Number
    Not Available
  • Coin Description
    Not Available
  • Coin Gross Vehicle Weight Code
    Not Available
  • Coin Power Output Code
    Not Available
  • Coin Series
    Not Available
  • Coin Wheelbase Description Code
    Not Available
  • Coin Wheelbase Name Code
    Not Available
  • Front Brakes
    DISCS
  • Generation Mark
    2
  • Ghost model for valuation purposes
    No
  • Insurance Group 1
    Not Available
  • Insurance Group 2
    Not Available
  • Manufacturers Corrosion Perforation Guarantee - Years
    12
  • Manufacturers Paintwork Guarantee - Years
    3
  • NCAP Adult Occupant Protection %
    Not Available
  • NCAP Child Occupant Protection %
    Not Available
  • NCAP Front/Side Impact - Discontinued February 09
    Not Available
  • NCAP Overall Rating - Effective February 09
    Not Available
  • NCAP Overall Rating - LCV
    Not Available
  • NCAP Pedestrian - Discontinued February 09
    Not Available
  • NCAP Pedestrian Protection %
    Not Available
  • NCAP Safety Assist %
    Not Available
  • Rear Brakes
    DISCS
  • Relative Height
    H1
  • Relative Length
    L2
  • Running Cost League Headings
    LARGE
  • Service Interval Frequency - Months
    24
  • Service Interval Mileage
    18000
  • Special Edition
    No
  • Special Order
    No
  • Standard manufacturers warranty - Mileage
    Unlimited
  • Standard manufacturers warranty - Years
    3
  • Steering
    PAS
  • This vehicle is classed as a car for VED purposes
    No
  • Timing Belt Interval Frequency - Months
    72
  • Timing Belt Interval Mileage
    120000
  • Vehicle Homologation Class
    N1
  • Vin/Frame No.
    Not Available

Performance

  • BHP
    177
  • Engine Power KW
    130
  • Engine Power RPM
    3600
  • Engine Torque LBS.FT
    302
  • Engine Torque MKG
    41.8
  • Engine Torque NM
    410
  • Engine Torque RPM
    1500
  • Top Speed
    100

Test Cycles

  • Emissions Test Cycle
    WLTP
  • RDE Certification Level
    RDE 2

Tyres

  • Alloys?
    No
  • Automatic Clutch
    No
  • Plated 3rd Axle
    Not Available
  • Plated 4th Axle
    Not Available
  • Space Saver?
    No
  • Tyre Make
    Not Available
  • Tyre Size Front
    205/75 R16
  • Tyre Size Rear
    205/75 R16
  • Tyre Size Spare
    FULL SIZE
  • Wheel Style
    Not Available
  • Wheel Type
    16" STEEL

Vehicle Dimensions

  • Front Overhang
    1000
  • Height
    2305
  • Height (including roof rails)
    Not Available
  • Length
    6846
  • Load Deck Height
    Not Available
  • Load Height
    Not Available
  • Load Length
    Not Available
  • Load Space Width Between Wheel Arches
    Not Available
  • Load Width
    Not Available
  • Lower Rear Door Width
    Not Available
  • Rear Door Height
    Not Available
  • Rear Overhang
    1356
  • Side Load Door Height
    Not Available
  • Side Load Door Width
    Not Available
  • Turning Circle - Kerb to Kerb
    16.2
  • Upper Rear Door Width
    Not Available
  • Wheelbase
    4490
  • Width (excluding mirrors)
    2033
  • Width (including mirrors)
    2427

Weight and Capacities

  • Boot Capacity Saloons
    Not Available
  • Fuel Tank Capacity (Litres)
    75
  • Gross Train Weight
    6000
  • Gross Vehicle Weight
    3500
  • Load Space Volume
    Not Available
  • Luggage Capacity (Seats Down)
    Not Available
  • Luggage Capacity (Seats Up)
    Not Available
  • Luggage Capacity - 2nd Row Seats Removed
    Not Available
  • Luggage Capacity - 2nd Row Seats Up
    Not Available
  • Luggage Capacity - 3rd Row Seats Down
    Not Available
  • Luggage Capacity - 3rd Row Seats Removed
    Not Available
  • Luggage Capacity - 3rd Row Seats Up
    Not Available
  • Max. Roof Load
    Not Available
  • Max. Towing Weight - Braked
    3000
  • Max. Towing Weight - Unbraked
    750
  • Minimum Kerbweight
    1993
  • No. of Seats
    3
  • Payload
    1507
  • Plated 2nd Axle
    2100
  • Plated Front Axle
    1800
