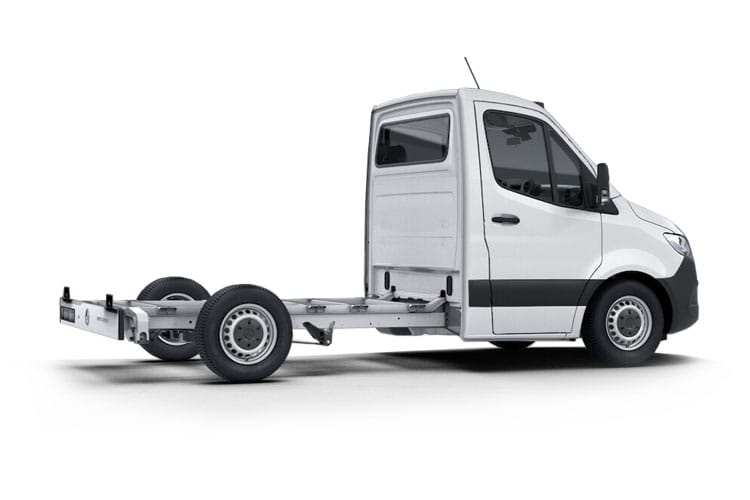

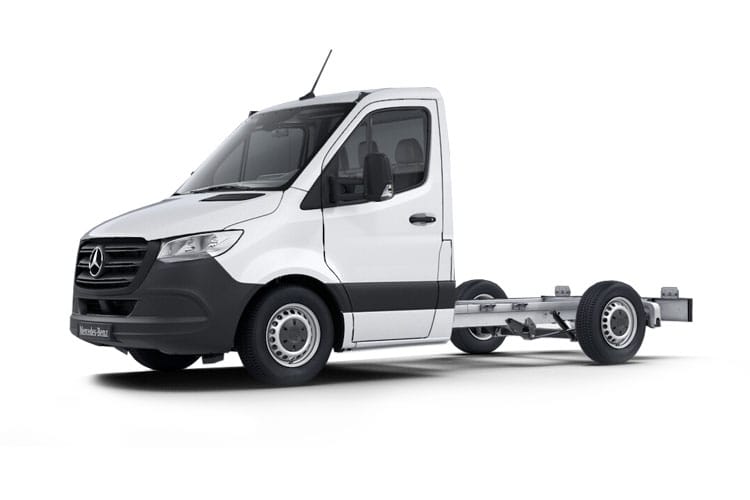

MERCEDES-BENZ SPRINTER 314CDI L2 DIESEL FWD

3.5t Progressive Chassis Cab

MERCEDES-BENZ SPRINTER 314CDI L2 DIESEL FWD 3.5t Progressive Chassis Cab

Images are for illustrative purposes only.



Customise Your Lease

An excess mileage charge will apply if you exceed the contract mileage. This will be detailed on your order form

Deal Summary

3.5t Progressive Chassis Cab MERCEDES-BENZ SPRINTER 314CDI L2 DIESEL FWD
Contract type
Contract Term
Initial Rental
Annual Mileage
Maintenance
Additional extras

Fetching your price

Key Information

Transmission
Transmission Manual
Fuel Type
Fuel Type Diesel
Stopwatch
0 - 62mph 0.00s
Engine Size
Engine Size 2.1litres

Data provided by CAP-HPI database - Ref# 49194

Options

Standard Equipment

Technical Data

Driver Convenience

Entertainment

Exterior Features

Interior Features

Packs

Paintwork

Passive Safety

Security

Technical

Trim

Wheels

Driver Convenience

  • Bluetooth connectivity
  • Comfort overhead control panel
  • Communication module (LTE) for digital services
  • Outside temperature gauge
  • Prewiring for parameterizable special module (PSM)
  • Rev counter
  • Speedometer
  • Trip computer
  • Wifi hotspot

Entertainment

  • 5V USB-C socket
  • Additional USB-C socket
  • Apple Carplay/Android Auto
  • Digital radio (DAB)

Exterior Features

  • Adaptive brake lights
  • Double-wing rear-end doors
  • Electric front windows
  • Headlight assistant
  • Heat insulated windscreen with filter band
  • Heat insulating glass
  • Lights for left hand traffic
  • Longitudinal member reinforcement

Interior Features

  • Driver's armrest
  • Full width partition
  • Height and reach adjustable steering wheel
  • Hinged lid
  • Interior shelf above windscreen
  • Multi function steering wheel
  • Pre-installation for switch panel
  • Storage compartment under cockpit

Passive Safety

  • Attention assist
  • Breakdown management
  • Crosswind assist
  • Driver's airbag
  • Jack
  • Mercedes-Benz emergency call system
  • Seat belt warning for driver's seat

Security

  • Anti-theft alarm system
  • Double locking
  • Immobiliser
  • Keyless start
  • Remote central locking
  • VIN visible from outside

Technical

  • 6 speed manual transmission
  • ABS
  • Active brake assist
  • Adaptive ESP
  • Brake assist
  • EBD
  • ECO Start/stop function
  • Front axle with increased load capacity
  • Fuel filter with water separator
  • Hill start assist
  • Jump start contact
  • Particulate filter (DPF)

Wheels

  • 225/65 R16 Tyres
  • Resistance-optimised tyres
  • Spare wheel bracket below frame end

Emissions - ICE

  • CO
    Not Available
  • HC
    Not Available
  • HC+NOx
    Not Available
  • Noise Level dB(A)
    Not Available
  • NOx
    Not Available
  • Particles
    Not Available
  • Standard Emissions
    EURO 6
  • WLTP - CO2 (g/km) - Comb
    246
  • WLTP - CO2 (g/km) - Extra High
    300
  • WLTP - CO2 (g/km) - High
    209
  • WLTP - CO2 (g/km) - Low
    251
  • WLTP - CO2 (g/km) - Medium
    205

Engine and Drive Train

  • Automatic Transmission
    No
  • Catalytic Convertor
    Yes
  • CC
    2143
  • Cooling System
    WATER
  • Cylinder Layout
    IN-LINE
  • Cylinders
    4
  • Engine Codes
    Not Available
  • Engine Layout
    NORTH SOUTH
  • Engine Make
    Not Available
  • Fuel Delivery
    COMMON RAIL
  • Fuel Type
    DIESEL
  • Gears
    6 SPEED
  • Manual Transmission
    Yes
  • Number of Valves
    16
  • Valve gear
    DOHC

Fuel Consumption - ICE

  • EC
    No
  • WLTP - FC (l/100km) - Comb
    9.4
  • WLTP - FC (l/100km) - Extra High
    11.4
  • WLTP - FC (l/100km) - High
    8
  • WLTP - FC (l/100km) - Low
    9.6
  • WLTP - FC (l/100km) - Medium
    7.8
  • WLTP - MPG - Comb
    30.1
  • WLTP - MPG - Extra High
    24.8
  • WLTP - MPG - High
    35.3
  • WLTP - MPG - Low
    29.4
  • WLTP - MPG - Medium
    36.2

General

  • Alternator Amps
    175
  • Did at least one aspect of this vehicles safety give cause for concern?
    No
  • Badge Engine CC
    2.1
  • Badge Power
    143
  • Based On ID
    Not Available
  • Battery AH
    92
  • Battery Volts
    12
  • Chassis Engine Number
    Not Available
  • Clutch
    SINGLE DRY PLATE
  • Coin Description
    Not Available
  • Coin Gross Vehicle Weight Code
    Not Available
  • Coin Power Output Code
    Not Available
  • Coin Series
    Not Available
  • Coin Wheelbase Description Code
    Not Available
  • Coin Wheelbase Name Code
    Not Available
  • Exhaust System
    CATALYTIC CONVERTER
  • Front Brakes
    VENTILATED DISCS
  • Front Suspension
    LEAF SPRINGS
  • Generation Mark
    3
  • Ghost model for valuation purposes
    No
  • Hand Brake
    REAR WHEELS
  • Insurance Group 1
    Not Available
  • Insurance Group 2
    Not Available
  • NCAP Adult Occupant Protection %
    Not Available
  • NCAP Child Occupant Protection %
    Not Available
  • NCAP Overall Rating - Effective February 09
    Not Available
  • NCAP Overall Rating - LCV
    Silver
  • NCAP Pedestrian Protection %
    Not Available
  • NCAP Safety Assist %
    52
  • Rear Brakes
    DISCS
  • Rear Suspension
    PARABOLIC SPRINGS
  • Relative Height
    H1
  • Relative Length
    L2
  • Running Cost League Headings
    LARGE
  • Special Edition
    No
  • Special Order
    No
  • Steering
    PAS RACK AND PINION
  • This vehicle is classed as a car for VED purposes
    No
  • Vehicle Homologation Class
    N1
  • Vin/Frame No.
    No

Performance

  • 0 to 62
    Not Available
  • BHP
    143
  • Engine Power KW
    105
  • Engine Torque LBS.FT
    243
  • Engine Torque MKG
    33.7
  • Engine Torque NM
    330
  • Engine Torque RPM
    1200
  • Top Speed
    Not Available

Test Cycles

  • Emissions Test Cycle
    WLTP

Tyres

  • Alloys?
    No
  • Automatic Clutch
    No
  • Plated 3rd Axle
    Not Available
  • Plated 4th Axle
    Not Available
  • Space Saver?
    No
  • Tyre Make
    Not Available
  • Tyre Size Front
    225/65 R16
  • Tyre Size Rear
    225/65 R16
  • Tyre Size Spare
    FULL SIZE
  • Wheel Style
    Not Available
  • Wheel Type
    16" STEEL

Vehicle Dimensions

  • Front Overhang
    1012
  • Height
    2292
  • Height (including roof rails)
    Not Available
  • Length
    5986
  • Load Height
    Not Available
  • Load Length
    Not Available
  • Lower Rear Door Width
    Not Available
  • Rear Door Height
    Not Available
  • Rear Overhang
    1050
  • Side Load Door Height
    Not Available
  • Side Load Door Width
    Not Available
  • Turning Circle - Kerb to Kerb
    15.2
  • Upper Rear Door Width
    Not Available
  • Wheelbase
    3924
  • Width (excluding mirrors)
    2020
  • Width (including mirrors)
    2345

Weight and Capacities

  • Boot Capacity Saloons
    Not Available
  • Fuel Tank Capacity (Litres)
    65
  • Gross Train Weight
    5500
  • Gross Vehicle Weight
    3500
  • Load Space Volume
    Not Available
  • Luggage Capacity (Seats Down)
    Not Available
  • Luggage Capacity (Seats Up)
    Not Available
  • Luggage Capacity - 2nd Row Seats Removed
    Not Available
  • Luggage Capacity - 2nd Row Seats Up
    Not Available
  • Luggage Capacity - 3rd Row Seats Down
    Not Available
  • Luggage Capacity - 3rd Row Seats Removed
    Not Available
  • Luggage Capacity - 3rd Row Seats Up
    Not Available
  • Minimum Kerbweight
    1826
  • No. of Seats
    3
  • Payload
    1674
