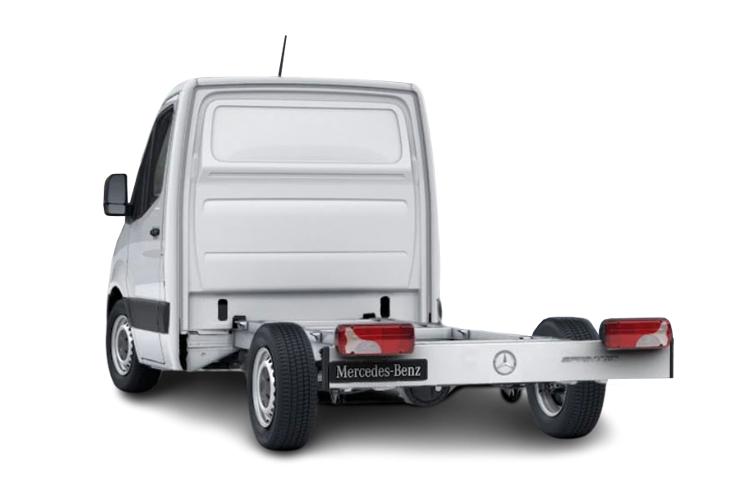

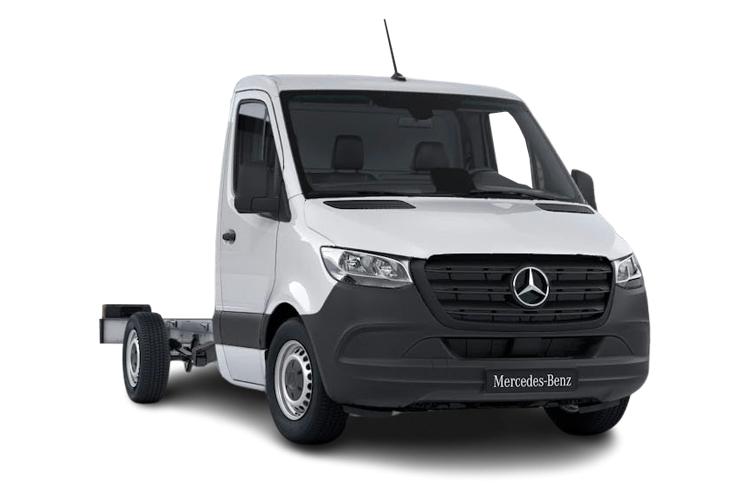

MERCEDES-BENZ SPRINTER 417CDI L2 DIESEL RWD 4.1t Chassis Cab Lease Deals

Key Information

Transmission Manual

Fuel Type Diesel

Top Speed 98mph

0 - 62mph 0.00s

Engine Size 2.0litres

Data provided by CAP-HPI database - Ref# 60260

Options

Standard Equipment

Technical Data

Driver Convenience

Extension of Programmable System Module (PSM) standard contact
Intelligent tachograph
Pre-installation electrical system PSM
Reversing warning device
Tachograph control under dashboard on passenger side
Tachograph deleted

Entertainment

5V USB-C socket

Packs

Charging pack - Sprinter
Comfort co-driver seat pack - Sprinter
Comfort driver seat pack - Sprinter
Winter package - Sprinter

Passive Safety

Co-driver thorax, pelvis and side airbag
Deletion of front passenger height adjustable seatbelt and buckle
Driver and passenger window airbags
Driver thorax, pelvis and side airbag
First aid kit
Orange seatbelts for driver and co-driver
Warning triangle

Security

Additional vehicle keys (2)
Multi button remote control
Remote central locking

Trim

Artico man-made leather - Black
Caluma fabric - Black
Cloth - Maturin black

Driver Convenience

(OTA) Over the air software updates
Active lane keeping assist
Bluetooth connectivity with audio streaming
Comfort overhead control panel with LED interior lighting including cab downlighting, reading lamps and spectacles compartment
Communication module (LTE) for digital services
Cruise control
Digital owner's manual
Electrical components for trailer socket
Instrument cluster with colour display
Intelligent Speed Assist
Outside temperature indicator
PAS
Pre installation for blind spot assist, bodybuilder
Pre-wiring for reversing camera with display in rear view mirror
Sideguard assist
Terminal strip for electrical connection
Tyre pressure monitoring front/rear, wireless
Wifi hotspot

Entertainment

2 way front speaker, 4 x 25 W output, sound settings, separate volume settings for audio and phone
AM/FM radio with dual tuner
Center fill speakers for improved sound quality and voice output
Digital radio (DAB)
Extensive personalization options with upto seven profiles
LINGUATRONIC voice control with optimized, intuitive voice assistant
MBUX multimedia system with 10.25" touch screen
Multimedia interface with three backlit 18 W PPS USB-C ports
Seat based voice recognition for driver and front passenger

Exterior Features

Adaptive brake lights
Delete parking lamp
Electrically heated and adjustable door mirrors
Headlight assistant
Heat insulating glass with filter band on windscreen
Lights for left hand traffic
Longitudinal member reinforcement
Rain sensor

Interior Features

Height and rake adjustable steering wheel
Multifunction steering wheel
Pre-installation - Remote services plus
Pre-installation for switch panel

Packs

Acoustic package - Sprinter
Smartphone integration package - Sprinter

Passive Safety

Attention assist
Breakdown management
Co-driver airbag
Crosswind assist
Deactivation of bulb failure indicator
Driver's airbag
Mercedes-Benz emergency call system
Seat belt reminder for co-driver seat
Seat belt warning for driver's seat

Security

Immobiliser

Technical

71 litre fuel tank
ABS
Active brake assist
EBD
ECO gear 6 speed manual transmission
ECO Start/stop function
Electric system for non DB body
Heavy duty - Euro 6
Hill start assist
Jump start contact
Weight variant 4100kg

Wheels

Resistance-optimised tyres
Wheel chocks

Emissions - ICE

CO

Not Available
HC

Not Available
HC+NOx

Not Available
Noise Level dB(A)

Not Available
NOx

Not Available
Particles

Not Available
Standard Emissions

EURO 6

Engine and Drive Train

Automatic Transmission

No
Catalytic Convertor

Yes
CC

1950
Cooling System

WATER
Cylinder Layout

IN-LINE
Cylinders

4
Engine Codes

Not Available
Engine Layout

NORTH SOUTH
Engine Make

Not Available
Fuel Delivery

COMMON RAIL
Fuel Type

DIESEL
Gears

6 SPEED
Manual Transmission

Yes
Number of Valves

16
Valve gear

DOHC

Fuel Consumption - ICE

EC

No

General

Alternative Fuel Qualifying

No
Alternator Amps

180
Did at least one aspect of this vehicles safety give cause for concern?

No
Badge Engine CC

2.0
Badge Power

170
Based On ID

Not Available
Battery AH

92
Battery Volts

12
Chassis Engine Number

Not Available
Clutch

SINGLE DRY PLATE
Coin Description

Not Available
Coin Gross Vehicle Weight Code

Not Available
Coin Power Output Code

Not Available
Coin Series

Not Available
Coin Wheelbase Description Code

Not Available
Coin Wheelbase Name Code

Not Available
Exhaust System

CATALYTIC CONVERTER
Front Brakes

VENTILATED DISCS
Front Suspension

LEAF SPRINGS
Generation Mark

3
Ghost model for valuation purposes

No
Hand Brake

REAR WHEELS
Insurance Group 1

Not Available
Insurance Group 2

Not Available
NCAP Adult Occupant Protection %

Not Available
NCAP Child Occupant Protection %

Not Available
NCAP Overall Rating - Effective February 09

Not Available
NCAP Overall Rating - LCV

Platinum
NCAP Pedestrian Protection %

Not Available
NCAP Safety Assist %

89
Rear Brakes

DISCS
Rear Suspension

PARABOLIC SPRINGS
Relative Height

H1
Relative Length

L2
Running Cost League Headings

LARGE
Special Edition

No
Special Order

No
Steering

PAS RACK AND PINION
This vehicle is classed as a car for VED purposes

No
Vehicle Homologation Class

N2
Vin/Frame No.

No

Performance

0 to 62

Not Available
BHP

170
Engine Power KW

125
Engine Power RPM

3800
Engine Torque LBS.FT

280
Engine Torque MKG

38.7
Engine Torque NM

380
Engine Torque RPM

1600
Top Speed

98

Test Cycles

Emissions Test Cycle

WLTP
RDE Certification Level

RDE 2

Tyres

Alloys?

No
Automatic Clutch

No
Plated 3rd Axle

Not Available
Plated 4th Axle

Not Available
Space Saver?

No
Tyre Make

Not Available
Tyre Size Front

235/65 R16
Tyre Size Rear

235/65 R16
Tyre Size Spare

Not Available
Wheel Style

Not Available
Wheel Type

16" STEEL

Vehicle Dimensions

Height

2329
Height (including roof rails)

Not Available
Length

5956
Load Height

Not Available
Load Length

Not Available
Lower Rear Door Width

Not Available
Rear Door Height

Not Available
Side Load Door Height

Not Available
Side Load Door Width

Not Available
Turning Circle - Kerb to Kerb

13.4
Upper Rear Door Width

Not Available
Wheelbase

3665
Width (excluding mirrors)

2020
Width (including mirrors)

2345

Weight and Capacities

Boot Capacity Saloons

Not Available
Fuel Tank Capacity (Litres)

71
Gross Train Weight

6100
Gross Vehicle Weight

4100
Load Space Volume

Not Available
Luggage Capacity (Seats Down)

Not Available
Luggage Capacity (Seats Up)

Not Available
Luggage Capacity - 2nd Row Seats Removed

Not Available
Luggage Capacity - 2nd Row Seats Up

Not Available
Luggage Capacity - 3rd Row Seats Down

Not Available
Luggage Capacity - 3rd Row Seats Removed

Not Available
Luggage Capacity - 3rd Row Seats Up

Not Available
Minimum Kerbweight

1777
No. of Seats

3
Payload

2323
