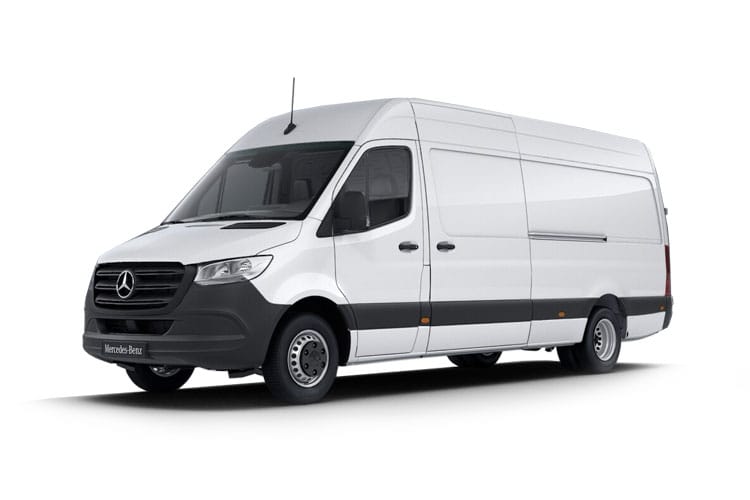

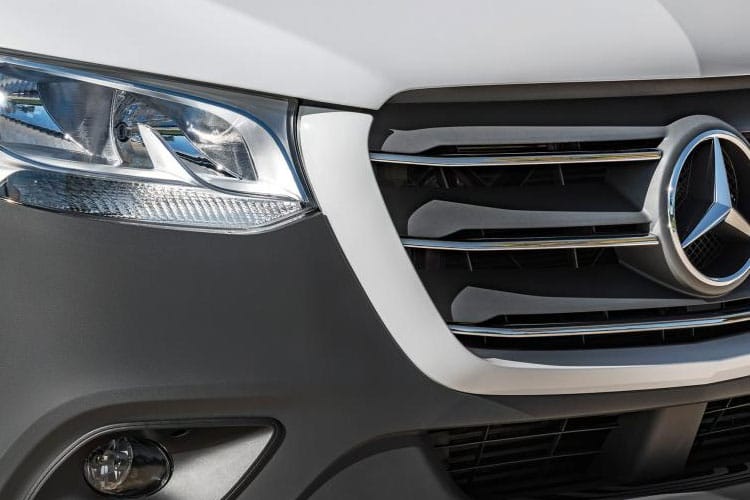

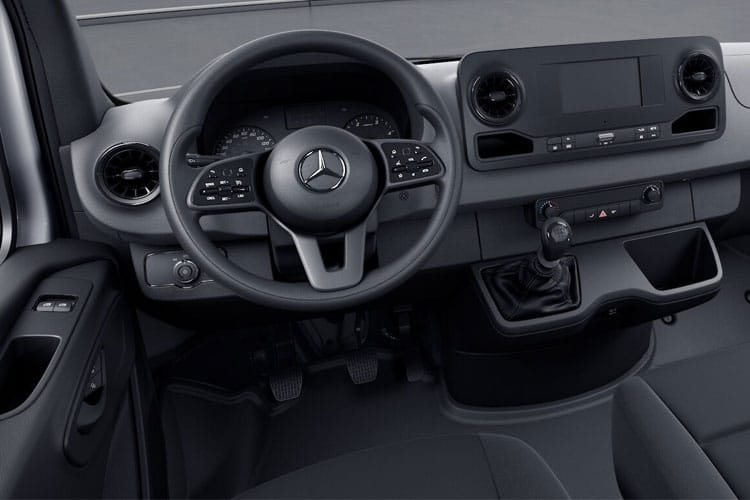

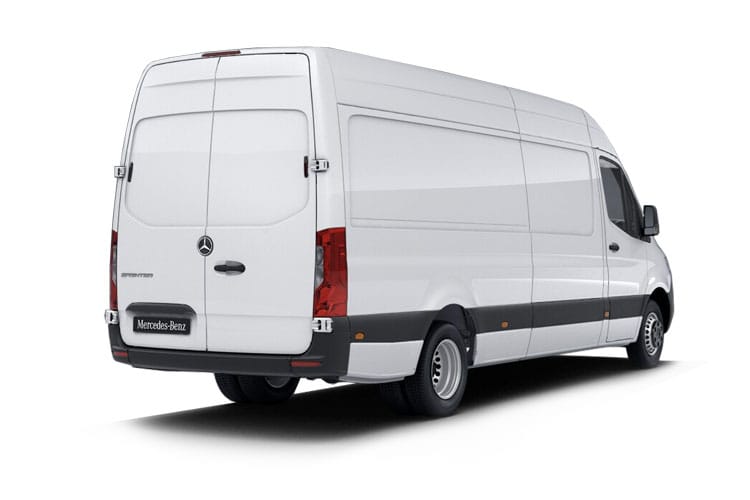

MERCEDES-BENZ SPRINTER 517CDI L3 DIESEL RWD

5.0t H2 Premium Van

Images are for illustrative purposes only.

Customise Your Lease

Contract type

Finance Lease Contract Hire

Contract Length (Months)

24 36 48 60

Initial Rental

Annual Mileage

Do You Need Vehicle Maintenance?

Yes I would like to include vehicle maintenance No I will maintain the vehicle myself

An excess mileage charge will apply if you exceed the contract mileage. This will be detailed on your order form

Deal Summary

5.0t H2 Premium Van MERCEDES-BENZ SPRINTER 517CDI L3 DIESEL RWD

Contract type

Contract Term

Initial Rental

Annual Mileage

Maintenance

Additional extras

Fetching your price

Key Information

Transmission Manual

Fuel Type Diesel

0 - 62mph 0.00s

Engine Size 2.0litres

Data provided by CAP-HPI database - Ref# 54840

Options

Standard Equipment

Technical Data

Entertainment

5V USB-C socket
MBUX multimedia system with 10.25" touch screen
MBUX multimedia system with 7" touch screen

Packs

Charging pack - Sprinter
Parking pack - Sprinter
Parking pack with reversing camera - Sprinter

Security

2 additional master keys
Multi-button key

Trim

Artico man-made leather when bought with 3 seat - Black
Cloth - Caluma black
Cloth - Maturin black
Interior luxury panelling
Window pillar panelling

Driver Convenience

Bluetooth connectivity
Comfort overhead control panel
Communication module (LTE) for digital services
Cruise control
Outside temperature gauge
PAS
Prewiring for parameterizable special module (PSM)
Rev counter
Speedometer
Terminal strip for electrical connection
Trip computer
Wifi hotspot

Entertainment

Additional USB-C socket
Apple Carplay/Android Auto
Digital radio (DAB)

Exterior Features

270 degree double rear wing doors opening to side wall
Adaptive brake lights
Electric front windows
Entrance handle on right rear corner pillar
Headlight assistant
Heat insulating glass with filter band on windscreen
Lights for left hand traffic
Longitudinal member reinforcement
Rear mud flaps
Side marker lights
Third rear brake light

Interior Features

Door operated interior courtesy light
Grab handle at load compartment sliding door partition
Height and reach adjustable steering wheel
Hinged cover for centre storage compartment
Hydraulic Jack
Multi function steering wheel
Pre-installation for switch panel

Passive Safety

Attention assist
Breakdown management
Crosswind assist
Driver's airbag
Mercedes-Benz emergency call system
Seat belt reminder for co-driver seat
Seat belt warning for driver's seat

Security

Anti-theft alarm system
Double locking
Keyless start
VIN visible from outside

Technical

ABS
Active brake assist
Adaptive ESP
ASR traction control
EBD
Eco gear 360 6 speed manual transmission
ECO Start/stop function
Fuel filter with water separator
Hill start assist
Jump start contact
Particulate filter (DPF)

Wheels

Full size spare wheel
Full wheel covers
Resistance-optimised tyres
Spare wheel bracket below frame end
Wheel chocks

Emissions - ICE

CO

Not Available
HC

Not Available
HC+NOx

Not Available
Noise Level dB(A)

Not Available
NOx

Not Available
Particles

Not Available
Standard Emissions

EURO 6

Engine and Drive Train

Automatic Transmission

No
Catalytic Convertor

Yes
CC

1950
Cooling System

WATER
Cylinder Layout

IN-LINE
Cylinders

4
Engine Codes

Not Available
Engine Layout

NORTH SOUTH
Engine Make

Not Available
Fuel Delivery

COMMON RAIL
Fuel Type

DIESEL
Gears

6 SPEED
Manual Transmission

Yes
Number of Valves

16
Valve gear

DOHC

Fuel Consumption - ICE

EC

No

General

Alternator Amps

180
Did at least one aspect of this vehicles safety give cause for concern?

No
Badge Engine CC

2.0
Badge Power

170
Based On ID

Not Available
Battery AH

92
Battery Volts

12
Chassis Engine Number

Not Available
Clutch

SINGLE DRY PLATE
Coin Description

Not Available
Coin Gross Vehicle Weight Code

Not Available
Coin Power Output Code

Not Available
Coin Series

Not Available
Coin Wheelbase Description Code

Not Available
Coin Wheelbase Name Code

Not Available
Exhaust System

CATALYTIC CONVERTER
Front Brakes

VENTILATED DISCS
Front Suspension

LEAF SPRINGS
Generation Mark

3
Ghost model for valuation purposes

No
Hand Brake

REAR WHEELS
Insurance Group 1

Not Available
Insurance Group 2

Not Available
NCAP Adult Occupant Protection %

Not Available
NCAP Child Occupant Protection %

Not Available
NCAP Overall Rating - Effective February 09

Not Available
NCAP Overall Rating - LCV

Not Available
NCAP Pedestrian Protection %

Not Available
NCAP Safety Assist %

Not Available
Rear Brakes

DISCS
Rear Suspension

PARABOLIC SPRINGS
Relative Height

H2
Relative Length

L3
Running Cost League Headings

LARGE
Special Edition

No
Special Order

No
Steering

PAS RACK AND PINION
This vehicle is classed as a car for VED purposes

No
Vehicle Homologation Class

N2
Vin/Frame No.

No

Performance

0 to 62

Not Available
BHP

170
Engine Power KW

125
Engine Power RPM

3800
Engine Torque LBS.FT

280
Engine Torque MKG

38.7
Engine Torque NM

380
Engine Torque RPM

1700

Test Cycles

Emissions Test Cycle

WLTP

Tyres

Alloys?

No
Automatic Clutch

No
Plated 3rd Axle

Not Available
Plated 4th Axle

Not Available
Space Saver?

No
Tyre Make

Not Available
Tyre Size Front

235/65 R16
Tyre Size Rear

235/65 R16
Tyre Size Spare

FULL SIZE
Wheel Style

Not Available
Wheel Type

16" STEEL

Vehicle Dimensions

Front Overhang

1021
Height

2706
Height (including roof rails)

Not Available
Length

6967
Load Deck Height

713
Load Height

1846
Load Length

4410
Load Space Width Between Wheel Arches

978
Load Width

1787
Lower Rear Door Width

1350
Rear Door Height

1846
Rear Overhang

1621
Side Load Door Height

1818
Side Load Door Width

1260
Turning Circle - Kerb to Kerb

15.2
Upper Rear Door Width

1555
Wheelbase

4325
Width (excluding mirrors)

2020
Width (including mirrors)

2345

Weight and Capacities

Boot Capacity Saloons

Not Available
Fuel Tank Capacity (Litres)

71
Gross Train Weight

7000
Gross Vehicle Weight

5000
Load Space Volume

14
Luggage Capacity (Seats Down)

Not Available
Luggage Capacity (Seats Up)

Not Available
Luggage Capacity - 2nd Row Seats Removed

Not Available
Luggage Capacity - 2nd Row Seats Up

Not Available
Luggage Capacity - 3rd Row Seats Down

Not Available
Luggage Capacity - 3rd Row Seats Removed

Not Available
Luggage Capacity - 3rd Row Seats Up

Not Available
Minimum Kerbweight

2585
No. of Seats

3
Payload

2415
